緑の建物、低炭素の放出
| 起源の場所: | 中国 |
|---|---|
| ブランド名: | Runpaq |
| 証明: | NONE |
| モデル番号: | K33 |
| 最小注文数量: | 1000部分 |
| パッケージの詳細: | カートン |
| 受渡し時間: | 15-21日 |
| 支払条件: | T/T、L/C、D/A、D/P、ウェスタン・ユニオン |
| 供給の能力: | 200000セット/月 |
| 正常な電圧: | リチウム電池2.5-5VDC | 適用: | 開いた/近い熱する弁 |
|---|---|---|---|
| 空の動かされた流れ: | <40 mA=""> | 完全なローディングで現在: | 約650 mA |
| モーター: | DC2.5V #300モーター | Torque: | 2 NM (1600:1) |
| 開閉時間: | <10 S（1600：1） | 縮小率: | 2000年: 1 （DN15 - 25球弁のために）; |
| 保護: | IP67 | モデル: | K33 |

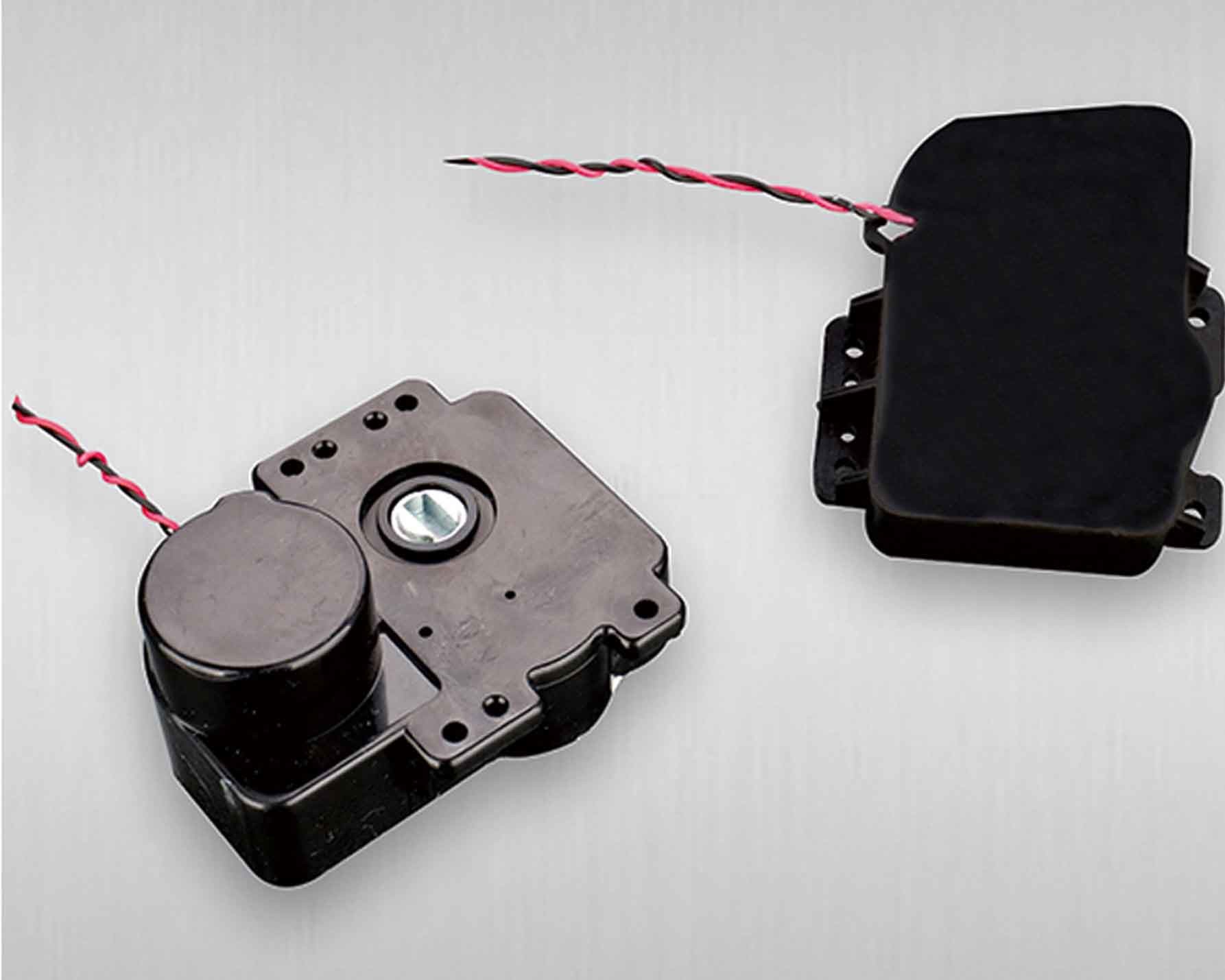

2NM dC2.5V actuator motor, 3 way mini motorized ball valve
Product description
The brass ball valve need be driven to be open or close, or an open angle by a DC motor actuator. Our DC synchronized gear actuator motors are available with DC2.5V-5V lithium powered, torque: 1NM - 9 NM at different velocity reduction ratio. The robust structure, ensures extremely long service life cycles more than 20,000 times, also different protection level. You'll get a wide selection of spare parts for your products in the application on HVAC, automation, IOT smart city, zone control valve, heating valve, AMR water meter, etc. A mini motorized ball valve, can be 2 way or 3 way full port, which are used for the flow control, zone valve, heating valve control, smart water meter open / close.
Technical data-Model K33
1. Voltage: DC3.6 V (Range: DC2.5 - 5 V, the higher the voltage, the larger torque, the shorter life span)
2. Current at idle: <40 mA @ 3.6V, 23ºC
3. Current with max loading: <650 mA (motor #300)
4. Torque: >2 NM (2000:1)
5. Open/close time: <10 S (2000:1)
6. Velocity reduction ratio: for DN15, DN20, DN25 ball valve (2000:1)
7. Protection: IP67
Wiring definition
| No | Color of wire | Definition |
| 1 | blue | on position signal, valve open |
| 2 | white | on position signal, public |
| 3 | yellow | on position signal, valve close |
| 4 | black | positive (+) |
| 5 | red | negative (-) |
Production overview
